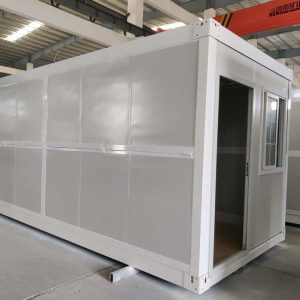

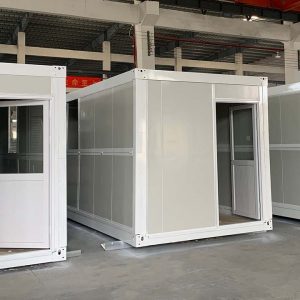

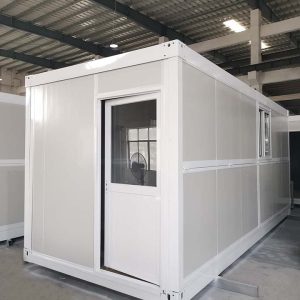

Foldable Container House

Economical and efficient prefabricated Housing Solutions

Foldable Container House is a new kind of integrated modular house. Its fast and efficient installation and dismantling time allows for the structure to be reused. It is ideal as emergency shelter, after-disaster housing, hospital, quarantine facility, office, command post, dormitory, shop, maintenace shop, etc.

Simple Math to get the Job done

Easy Installation in 4 Steps

2 People + 5 Minutes = Foldable Container House

Less Manpower

1 crane or forklift + 2 workers needed

Flat and solid Ground

Foundation building not necessary

Multitude of Perks and Advantages

Environment Protection

No construction waste, materials recyclable

Easy to Install

Workers can install a single unit in only a few minutes

Flexible Layout

Highly customizable meaning partition wall, windows, ceiling, doors easily added

Good Performance

Water proof, moisture proof, heat insulation and sound insulation

Fit nicely into single, flat and compact package that includs roof, floor, walls, door, windows and interior decoration
Easily transported and reused for various projects and purposes
Reduced cost and time regarding transport and installation
Creative, practical, customizable and good space utilization
Compounding feature enables containers to be linked and combined for bigger structure with various layouts
Supporting facilities can also be added, washbasin, shower, kitchen, air conditioner, electrical sockets, etc.

Mount the Foldable Container House in just 4 Steps

Hook up the unit

Lift up the unit

Flip up the unit

Set up the unit

Product Specification

COMPONENT	DESCRIPTION
Size	5.80x2.50x2.45m
Steel Structure	Square tube and bending steel plate
Length	Inner length / external length: 5.80m / 5.90m
Width	Inner width / external width: 2.3m / 2.50m
Height	Inner height / external height: 2.41m / 2.59m
Wall Panel	50mm EPS sandwich panel / rock wool sandwich panel / 0.326 / 0.376 / 0.426 / 0.476mm steel sheet
Wall Color	White color and optional colors
Color	White / grey / blue color for the steel frame
Roof	50mm EPS sandwich panel / rock wool sandwich panel / 0.326 / 0.376 / 0.426 / 0.476mm steel sheet
Door	50mm EPS sandwich panel / rock wool sandwich panel / 0.326 / 0.376 / 0.426 / 0.476mm steel sheet with lock /optional doors
Window	Aluminum sliding openings / PVC sliding openings with security bar
Floor	16mm thinkness fire protection MGO board / optional floor
Decoration Wall	Optional: PVC cladding / WPC cladding
Electricity	Standard (Lighting + socket + switch)
Install Time	2 workers 5 min
Wind Resistance	Wind speed 120 km/h
Earthquake Resistance	Grade 8
Snow Load Capacity Of Roofing	0.6kn/m2
Live Load Capacity Of Roofing	0.6kn/m2
Wall Permitted Loading	0.6kn/m2
Heat Conductivity Coefficient	0.35kcal/m2hc
Container Loading	10 - 12 sets/40HQ
